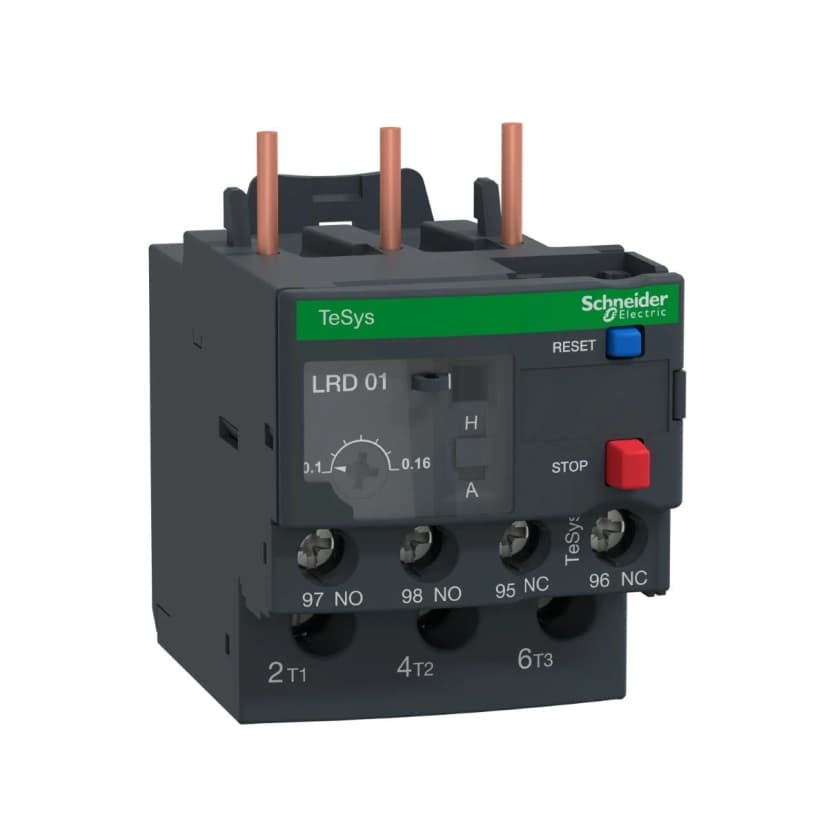

Schneider Electric LRD01 TeSys LRD Thermal Overload Relay
5.0 Rating
Model Ref: LRD01
Product Overview
TeSys LRD differential thermal overload relay, Class 10A, with adjustable thermal setting range of 0.10 – 0.16 A. Designed for direct mounting under compatible TeSys D contactors (LC1D09…D38). Provides motor protection against overloads and phase failures with built-in 1 NO + 1 NC auxiliary contacts. Features manual/automatic reset selection, trip test function, and screw clamp terminals. Conforms to IEC 60947-4-1.
Key Features & Value
- Genuine Schneider Electric Part
- Tested for High Reliability
- Compact design, easy integration
- Global safety certifications
Estimated Unit Price
AED 76.92excl. VAT
* Bulk pricing discounts apply on large orders
Technical Specifications
Detailed parameters for model LRD01
| Parameter | Specification Details |
|---|---|
| Type | Thermal Overload Relay |
| Trip Class | Class 10A |
| Thermal Adjustment Range | 0.10 – 0.16 A |
| Auxiliary Contacts | 1 NO + 1 NC |
| Compatible Contactors | LC1D09…D38 |
| Connection Type | Screw Clamp Terminals |
| Reset Mode | Manual / Automatic |
| Standard | IEC 60947-4-1 |
